Description

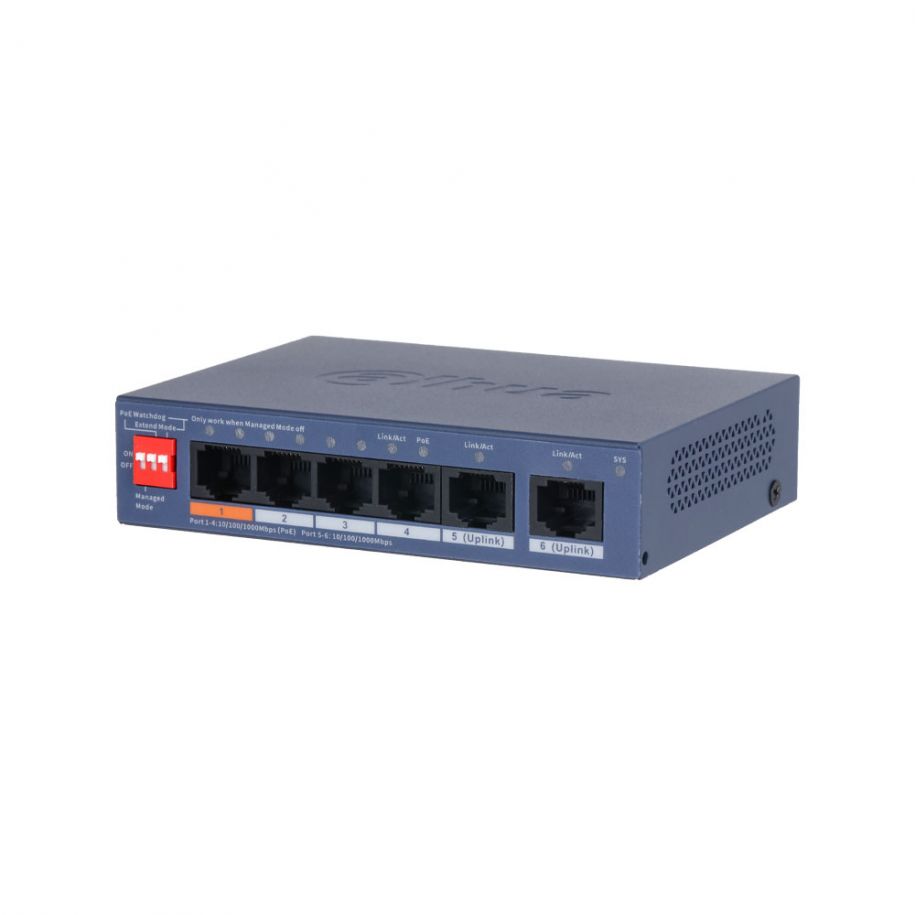

Dahua DH-CS4006-4GT-60 6-Port Gigabit Switch with 4-Port PoE
The Dahua DH-CS4006-4GT-60 is a compact 6-port Gigabit PoE switch designed for reliable networking and surveillance applications. It features 4 × 10/100/1000 Mbps PoE ports and 2 × Gigabit uplink ports, with a total PoE budget of up to 60W and support for IEEE 802.3af/at and Hi-PoE standards. With 12 Gbps switching capacity, VLAN support, PoE power management, long-distance PoE transmission, and web/cloud management, it provides efficient connectivity for IP cameras, access points, and other network devices. Its durable metal housing supports desktop or wall mounting, making it suitable for homes, offices, shops, and small CCTV installations.
6-Port Cloud-Managed Gigabit PoE Switch with Smart Network Control
Equipped with 4 × Gigabit PoE ports and 2 × Gigabit uplink ports, providing reliable high-speed connectivity for IP cameras, NVR systems, and surveillance backbone networking in small-to-medium installations.
Total PoE Power Budget up to 60W with Hi-PoE Support on Port 1
Supports IEEE 802.3af/at standards with up to 30W per port and up to 60W on Port 1, ensuring stable power supply for fixed cameras and selected high-power devices like PTZ cameras.
Cloud Management Support via DoLynk Care Platform
Enables centralized monitoring, remote configuration, alarm notifications, and real-time device status management through mobile app and web interface for simplified maintenance.
PoE Watchdog for Automatic Camera Recovery
Automatically detects offline IP cameras and restarts PoE ports when communication fails, improving surveillance reliability and reducing manual maintenance effort.
Layer-2 Switching with 12Gbps Switching Capacity
Provides stable packet forwarding with 12Gbps switching capacity and 8.93Mpps forwarding rate, ensuring smooth multi-channel HD video transmission.
Smart Intelligent PoE Power Management Function
Supports automatic PoE power allocation, overload protection, and remote PoE on/off control for efficient power usage across connected surveillance devices.
Wide Operating Temperature Range for Reliable Deployment
Supports stable operation between −10°C to +55°C with a fully enclosed metal housing for improved durability and heat dissipation.
Specifications
| Brand | Dahua |
| Model | DH-CS4006-4GT-60 |
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 8.9 Mpps |
| Description of Function Slots | Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink) |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Temperature | –40°C to +70°C (–40°F to +158°F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | External power supply: 53 VDC, 0.8 A |
| Power Consumption | Idling: ≤3W Full load: 65W |
| Static Protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Lightning Protection | Common mode: 6 kV |
| Net Weight | 0.2 kg (0.44 lb) |
| Gross Weight | 0.76 kg (1.68 lb) |
| Product Dimensions | 115mm × 84mm × 27mm (4.53″ × 3.33″ × 1.06″) (L × W × H) |
| Packaging Dimensions | 195mm × 114mm × 83mm (7.68″ × 4.49″ × 3.27″) (L × W × H) |
| Casing Material | Sheet metal |
| Facility | Desktop mount, wall mount |
| PoE | |
| PoE | Yes |
| PoE Power | Port 2-4≤30W, Port 1≤60W, Total≤60W |
| PoE Protocol | IEEE802.3af, IEEE802.3at, Hi-PoE |
| PoE Power Consumption Management | PoE power consumption management, PoE power on/off, turns off PoE if overload is detected |
| PoE Pin Assignment | 1, 2, 4, 5（V+）, 3, 6, 7, 8（V-） |
| Long Distance PoE Transmission | Yes |
