Description

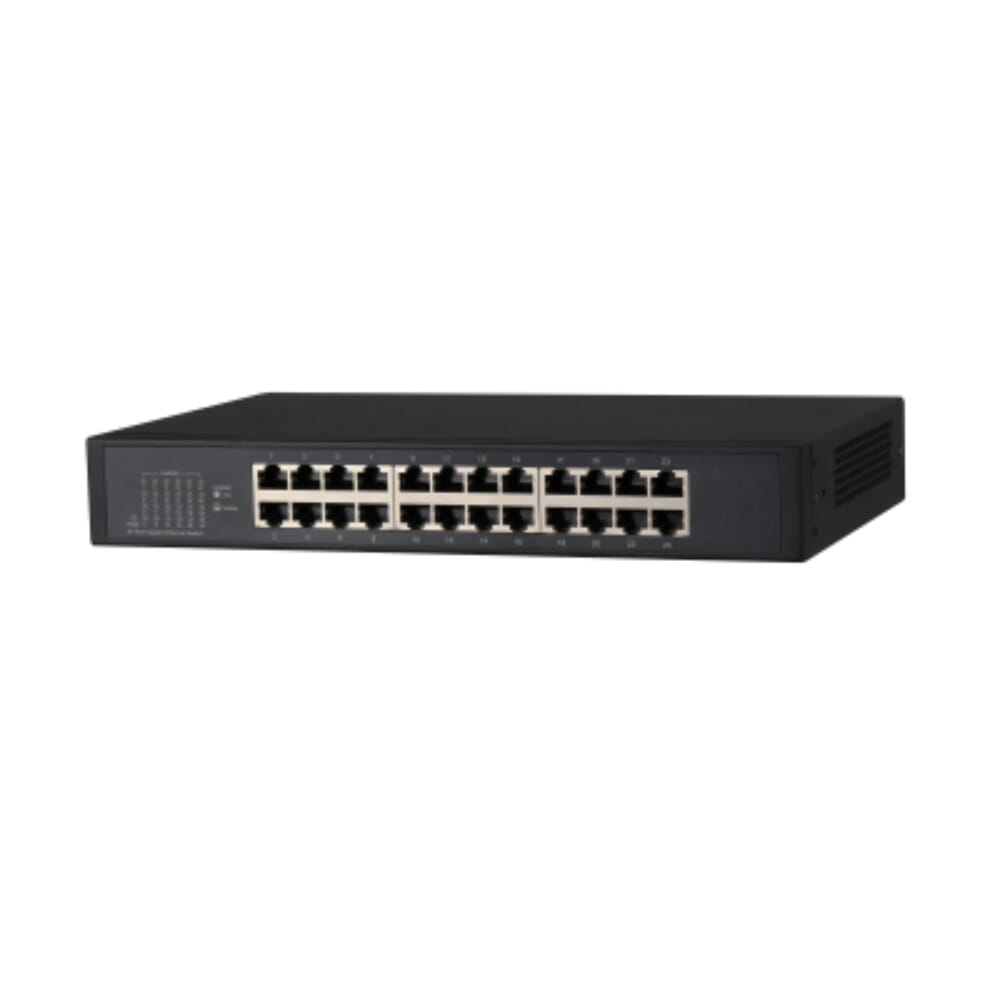

Dahua DH-PFS3024-24GT 24-Port Gigabit Switch
The Dahua DH-PFS3024-24GT 24-Port Gigabit Switch is a reliable Layer 2 unmanaged network switch designed for fast and stable data connectivity in offices, surveillance systems, and business networks. It features 24 × 10/100/1000 Mbps Gigabit Ethernet ports, offering a 48 Gbps switching capacity and 35.7 Mpps forwarding rate for efficient network performance. Its plug-and-play design requires no complicated configuration, while the durable metal enclosure provides good heat dissipation. The switch also includes lightning protection and supports store-and-forward transmission, making the Dahua DH-PFS3024-24GT a practical choice for expanding wired networks.
24-Port Gigabit Ethernet Switch
Equipped with 24 × 10/100/1000 Mbps RJ45 ports, providing high-speed connectivity for computers, NVRs, IP cameras, and other network devices.
Layer-2 Unmanaged Switch
Simple plug-and-play design that requires no configuration, allowing quick installation and easy network expansion.
High Switching Performance
Offers 48 Gbps switching capacity and 35.7 Mpps packet forwarding rate for stable and efficient data transmission across the network.
Large MAC Address Table
Supports 8K MAC address entries, enabling efficient handling of multiple connected devices in medium-sized networks.
Durable Metal Enclosure
Built with a metal casing that improves durability and provides efficient heat dissipation for continuous operation.
Reliable Operating Environment
Designed to work in 0°C to 40°C temperature and 10–90% humidity, ensuring stable performance in various conditions.
Lightning and Surge Protection
Provides up to 6 kV lightning protection, helping safeguard network equipment from electrical surges.
Specifications
| Brand | Dahua |
| Model | DH-PFS3024-24GT |
| Ethernet Port | 24*10/100/1000 Base-T |
| Switching Capacity | 48G |
| Packet Forwarding Rate | 35.7Mpps |
| Packet Buffer Memory | 2Mb |
| MAC Table Size | 8K |
| Exchange Mode | Store & forward |
| Application Humidity | 10%~90% |
| Power | AC: 100-240V 50/60Hz |
| Communication Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az |
| Working Temperature | 0°C~+40°C |
| Weight | 1.43kg |
| Dimension(W×D×H) | 294mm x 178mm x 44mm |
