Description

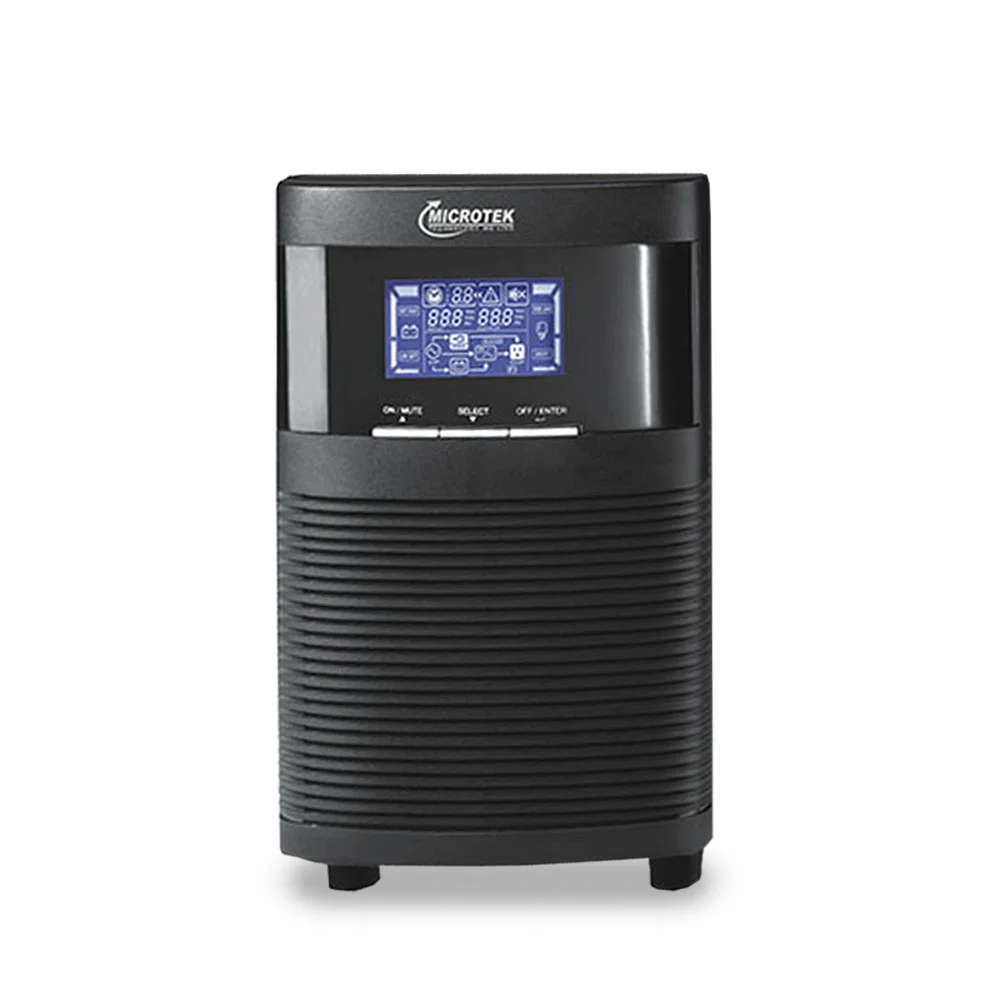

Microtek ONLINE UPS E² Series 1KVA 24VDC-IB
Microtek High Frequency Online UPS provides Uninterrupted Pure Power for Critical Applications such as Computer Network, Servers, Cyber Cafes, ATM Machines and CCTV Camera etc. E2 Series Ensures Syschronization of the hardware, Software, analytics and ongoing services to ensure its customers vital applications run continously, perform optimally as per the requirement. this series is based on high frequency dobule convertion IGBT technology with static bypass which improves reliablility and operates with configurable output voltage settings.
Key Features
- Inbuilt OVCD (Over Voltage Cut-Off Device) with Surge Protection.
- Static Bypass-improves Reliability.
- Alarm (Optional) for Mute Mode.
- Smart LCD Display for Real-time information.
- SNMP Card (Optional) on demand.
- EMI Noise Filter.
- Isolation Transformer (Optional).
- Efficient Micro Controller based.
- Over Temperature Indication & Protection.
- Advanced PFC Technology.
- Generator Compatible.
- Robust Product-improves Power Quality with Reliability.
- Configurable Output Voltage settings.
- External Charger up to 8 Amps. (Optional)
- Output Frequency fixed at 50Hz or can synchronized with Input Frequency.
Specifications
| GENRAL INFORMATION | |
| MODEL NAME / NUMBER | Online UPS E²-IB |
| CAPACITY | 1KVA/800V |
| DC VOLTAGE SYSTEM | 24 VDC |
| INPUT | |
| INPUT VOLTAGE RANGE | 110VAC+5% – 300VAC+5% |
| FREQUENCY RANGE | 40Hz – 70Hz |
| PHASE | SINGLE PHASE WITH GROUND |
| POWER FACTOR | >0.99 @ FULL LOAD |
| OUTPUT | |
| OUTPUT VOLTAGE | 200/ 208/ 220/ 230/ 240VAC |
| AC VOLTAGE REGULATION | +1% (Battery Mode) |
| FREQUENCY RANGE (Battery Mode) | 50Hz+0.25Hz OR 60Hz+0.3Hz |
| CURRENT CREST RATIO | 3:1 |
| HARMONIC DISTORTION |
|
| OVERLOAD CAPABILITY |
|
| TRANSFER TIME | AC MODE TO BATTERY MODE 0/ INVERTER TO BYPASS: <4ms (Typical 2.5ms) |
| WAVEFORM (Battery Mode) | PURE SINEWAVE |
| EFFICIENCY | |
| EFFICIENCY (AC MODE / BATTERY MODE) | 88% / 83% |
| BATTERY & CHARGER | |
| BATTERY TYPE & NUMBERS | SMF 12V / 9AH X 2 Nos. (In-Built Batteries) |
| CHARGING CURRENT | 1A |
