Description

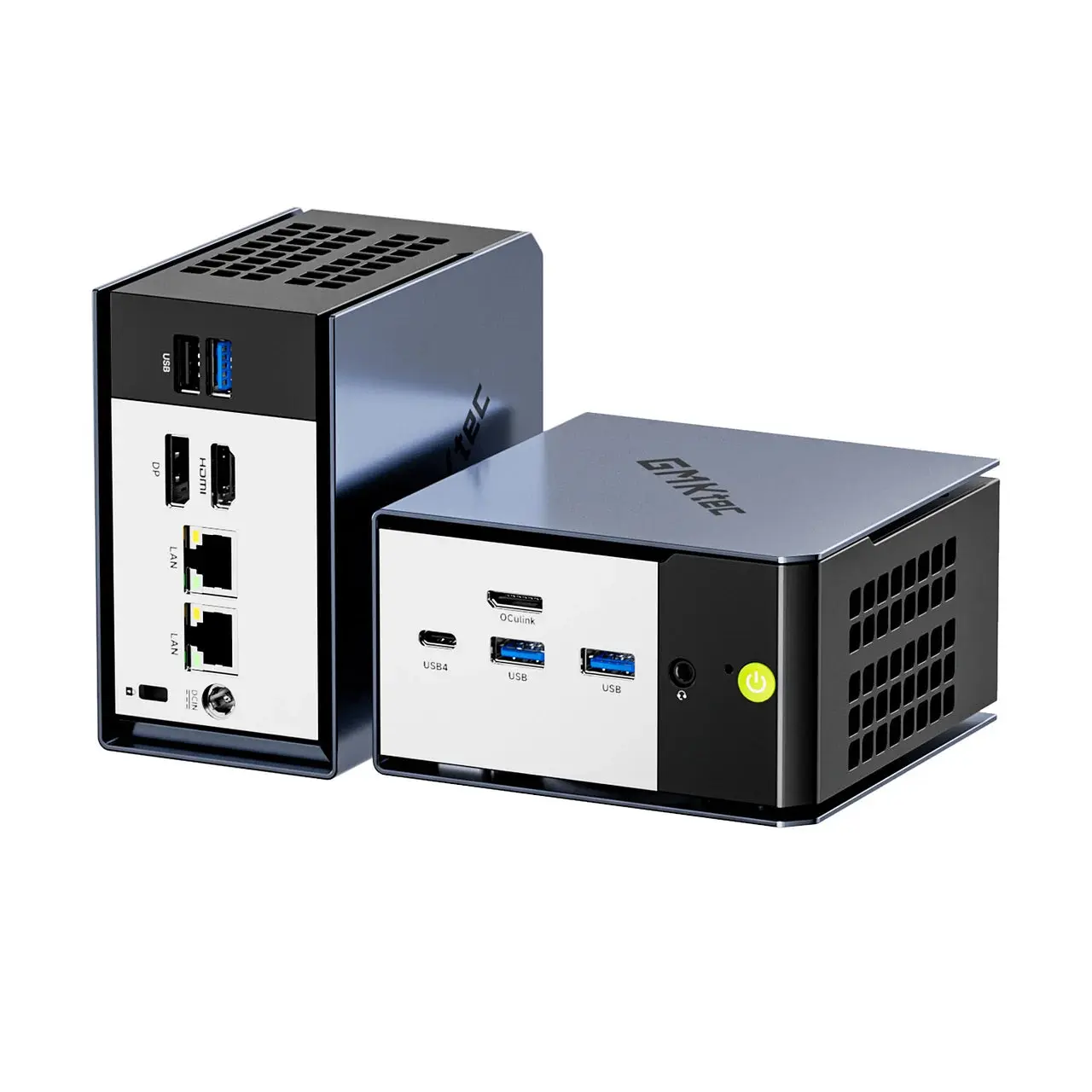

GMKtec NucBox K16 Mini PC
The GMKtec NucBox K16 Mini PC is a compact yet powerful desktop solution designed for users who need strong processing performance, modern connectivity, high-speed memory, and flexible storage expansion without the size of a traditional desktop tower. Powered by the AMD Ryzen™ 7 7735HS processor, the NucBox K16 delivers 8 cores and 16 threads with Zen 3+ architecture, making it suitable for demanding productivity, multitasking, content creation, entertainment, development, and everyday computing.
Built on the efficient TSMC 6nm FinFET process, the AMD Ryzen 7 7735HS combines a 3.2GHz base frequency with a maximum boost frequency of up to 4.75GHz. With 16MB of L3 cache, 4MB of L2 cache, and 512KB of L1 cache, the processor is designed to handle multiple applications and demanding workloads efficiently.
Powerful AMD Ryzen 7 Performance
At the heart of the GMKtec NucBox K16 is the AMD Ryzen 7 7735HS, a high-performance 7000 Series mobile processor featuring 8 cores and 16 threads. Its Zen 3+ architecture provides a strong combination of responsive performance and energy efficiency.
With boost speeds reaching up to 4.75GHz, the K16 can handle office applications, large spreadsheets, browser-based workloads, programming environments, media applications, and multitasking with ease. Whether you’re working from home, managing a business, studying, or creating digital content, the Ryzen 7 processor provides the performance needed for demanding everyday computing.
GMKtec NucBox K16 Specifications
| Model | GMKtec NucBox K16 |
| CPU Model | AMD Ryzen™ 7 7735HS |
| CPU | AMD Ryzen™ 7000 Series Processor, 8 Cores, 16 Threads TSMC 6nm FinFET Process Base Frequency 3.2GHz, Max Boost up to 4.75GHz 512KB L1 Cache / 4MB L2 Cache / 16MB L3 Cache Zen 3+ Architecture |
| CPU Socket / Package | TSMC 6nm FinFET |
| GPU | AMD Radeon™ 680M Graphics 12 Cores, up to 2200MHz |
| Memory (RAM) | On-board LPDDR5-6400 Memory 32GB standard configuration Non-upgradable design |
| Storage (ROM) | PCIe 3.0 M.2 2280 SSD 512GB |
| Storage Expansion | 2 × M.2 2280 PCIe 4.0 ×4 SSD Slots Supports up to 8TB per slot (Max 16TB) SATA SSD not supported |
| Graphics Output | Triple display output via HDMI + DisplayPort + USB4 Supports up to 8K resolution |
| Network | Wi-Fi 6E (RZ616, up to 2.4Gbps) Bluetooth 5.2 Dual 2.5G Ethernet LAN (RTL8125BG) |
| Power | Built-in coin cell battery DC Power Adapter 19V / 6.32A, 120W |
Key Features
- AMD Ryzen 7 7735HS processor with 8 cores and 16 threads
- Zen 3+ architecture with up to 4.75GHz boost frequency
- Efficient TSMC 6nm FinFET manufacturing process
- Integrated AMD Radeon 680M Graphics with 12 cores
- 32GB LPDDR5-6400 onboard memory for responsive multitasking
- Fast 512GB PCIe 3.0 M.2 2280 SSD
- Two M.2 2280 PCIe 4.0 ×4 expansion slots
- Supports up to 16TB total SSD expansion according to the provided specifications
- Triple-display support through HDMI, DisplayPort, and USB4
- Supports display output up to 8K resolution
- Fast Wi-Fi 6E wireless networking
- Up to 2.4Gbps Wi-Fi capability under supported conditions
- Bluetooth 5.2 for wireless peripherals
- Dual 2.5G Ethernet LAN for high-speed wired networking
- Compact mini PC design for space-saving desktop setups
- 120W power adapter included
Conclusion
The GMKtec NucBox K16 Mini PC combines the performance of the AMD Ryzen 7 7735HS, integrated Radeon 680M graphics, fast 32GB LPDDR5-6400 memory, and flexible PCIe SSD expansion in a compact desktop platform. Its triple-display support, 8K capability, Wi-Fi 6E, Bluetooth 5.2, and dual 2.5G Ethernet make it a versatile option for modern home and professional computing environments.
With a 512GB SSD included and two PCIe 4.0 ×4 M.2 slots available for expansion, the K16 can also accommodate substantial storage requirements. For users looking for a powerful AMD Ryzen mini PC with 32GB RAM, fast networking, multi-display support, and extensive SSD expansion, the GMKtec NucBox K16 provides a compact and capable desktop solution.
