Description

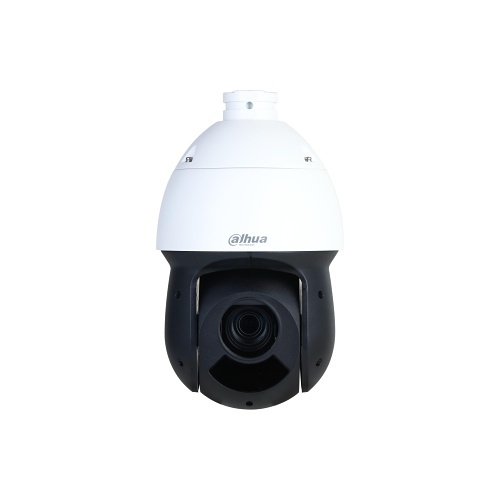

Dahua DH-SD49216DB-HNY 2MP Camera
The Dahua DH-SD49216DB-HNY 2MP Camera is a professional 16× Starlight IR Network PTZ camera designed for reliable long-distance surveillance. It features a 2MP 1/2.8″ CMOS sensor and delivers Full HD 1920×1080 video with excellent low-light performance using Dahua Starlight technology. Its 16× optical zoom allows users to capture clear details across wide areas, while the powerful IR illumination provides up to 100 meters of night vision. The camera also supports intelligent features such as human and vehicle classification, perimeter protection, face detection, and SMD for improved monitoring accuracy. With IP66 weather protection, 120 dB WDR, H.265 compression, and robust PTZ functionality, the DH-SD49216DB-HNY is well suited for outdoor security applications, commercial premises, parking areas, and large surveillance environments.
Starlight Technology
For challenging low-light conditions, Dahua’s Starlight Ultra-low Light Technology offers the best in light sensitivity, capturing color in vivid detail, even in lighting as low as 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, producing clear images in dark environments.
Protection (IP66, TVS 6000 V)
IP66, TVS 6000 V lightning proof, surge protection, and voltage transient protection.
Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets to improve alarm accuracy.
PFA Technology
PFA technology has introduced new methods of judgment that ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms that ensure image clarity when zooming and that shorten focus time. This makes the camera highly advanced in its functions, substantially improving the quality of your experience.
SMD
Empowered by Deep-Learning Algorithms, Dahua SMD filters out motion detection alarms triggered by targets that are not a concern. It quickly recognizes humans and vehicles, triggering alarms when an intrusion occurs.
Specifications
| Brand | Dahua |
| Model | SD49216DB-HNY |
| Camera | |
| Image Sensor | 1/2.8″ CMOS |
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on) |
| Illumination Distance | 100 m (328.08 ft) (IR) |
| Illuminator On/Off Control | Zoom Prio Manual Smart IR |
| Illuminator Number | 3 (AND) |
| Lens | |
| Focal Length | 5.0 mm–80.0 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 53.9°–4.6° V: 30.3°–2.6° D: 60°–5.3° |
| Optical Zoom | 16× |
| Focus Control | Auto, semi-auto, manual |
| Close Focus Distance | 0.1 m–2 m (0.33 ft–6.56 ft) |
| Iris Control | Fixed |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°/s–80°/s Tilt: 0.1°/s–80°/s |
| Preset Speed | Pan: 80°/s Tilt: 80°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern, Preset, Tour |
| PTZ Protocol | DH-SD Pelco-P/D (auto recognition) |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire, intrusion, climbing fences, loitering detection, abandoned/missing object, fast moving, parking detection, people gathering, vehicle/human alarm classification |
| Face Detection | Support face detection, capturing pictures, face enhancement |
| SMD | Yes |
