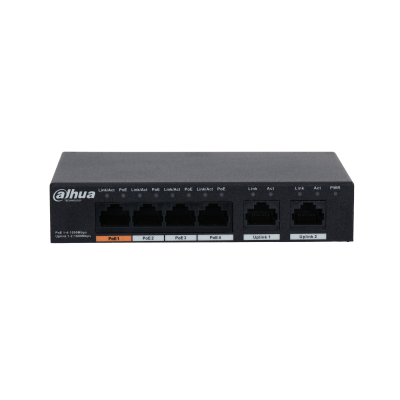

Dahua DH-PFS3006-4GT-60 6-Port Switch with 4-Port PoE
The Dahua DH-PFS3006-4GT-60 is a compact 6-port unmanaged Gigabit switch designed for reliable networking and PoE connectivity in CCTV and small business environments. It features 4 × 10/100/1000 Mbps PoE ports and 2 × Gigabit uplink ports, with a total PoE budget of up to 60W. Port 1 supports up to 60W Hi-PoE, while Ports 2–4 support up to 30W each. It also supports PoE Watchdog, intelligent PoE power management, and long-distance PoE transmission up to 250 meters, making it a practical choice for IP cameras and other PoE devices.
6-Port Gigabit PoE Switch
Equipped with 4 × 10/100/1000 Mbps PoE ports and 2 × 10/100/1000 Mbps uplink ports, enabling high-speed connection for IP cameras, NVRs, and other network devices.
60W Total PoE Power Budget
Supports IEEE 802.3af, IEEE 802.3at, and Hi-PoE standards, with Port 1 providing up to 60W and ports 2–4 up to 30W each within the total power budget.
Gigabit Network Performance
Provides 14 Gbps switching capacity and 8.928 Mpps packet forwarding rate for fast and stable data transmission.
Long-Distance PoE Transmission
Supports up to 250 m PoE transmission distance in extend mode using CAT5e/CAT6 cables, suitable for large CCTV installations.
Protection Features
Built with ESD protection (up to 8 kV) and lightning protection up to 4 kV, helping safeguard connected devices.
Wide Operating Environment
Operates in temperatures from –10 °C to +55 °C with 5–95% humidity, ensuring reliable performance in various environments.
Specifications
| Brand | Dahua |
| Model | DH-PFS3006-4GT-60 |
| Hardware Feature | |
| Ethernet Port | Port1-4: 4 × RJ-45 10/100/1000M (PoE) Port5-6: 2 × RJ-45 10/100/1000M (uplink) |
| PoE Power Consumption | Port1≤ 60 W (Hi-PoE) Port2-4 ≤30 W Total≤60 W |
| Power Consumption | Idling: 0.96 W Full load: 60 W |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x |
| PoE | |
| PoE Protocol | IEEE802.3af/ IEEE802.3at/ Hi-PoE |
| Power Supply Pin | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Long Distance | 250 m long distance PoE transmission |
| PoE Power Management | Yes |
| PoE Watchdog | Yes |
| Performance | |
| Switching Capacity | 14 Gbps |
| Packet Forwarding Rate | 8.928 Mbps |
| Packet Buffer Memory | 1 Mbit |
| MAC Address Table | 2 K |
| Flow Control | Enable by default |
| Working Temperature | –10 °C to 55 °C (+14°F to +131°F) |
| Application Humidity | 5%–95% (RH) |
| General | |
| Power Input | 48 V – 57 V DC |
| Lighting Protection | Common mode: 4 kV Differential mode: 2 kV |
| ESD Protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Wall-mount Installation | Yes |
| Anti-theft Lock Hole | Yes |
| Weight | 0.30 kg (0.64 lb) |
| Dimension | 130 mm × 85 mm × 26 mm (5.12″ × 3.35″ × 1.02″) |
