Description

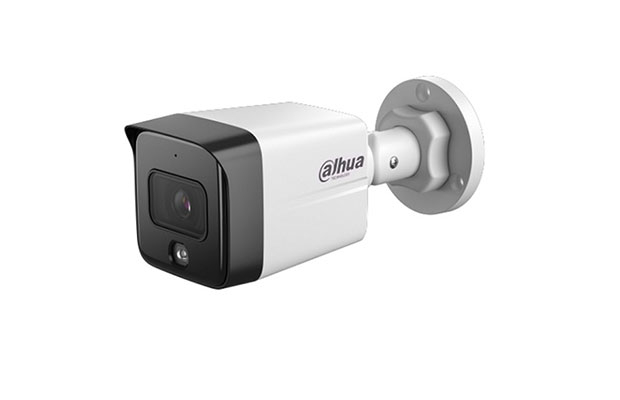

Dahua DH-IPC-HFW1230TC1 2 MP Camera
The Dahua DH-IPC-HFW1230TC1 2 MP Camera is a reliable Entry Series fixed-focal bullet network camera designed for clear and dependable surveillance in homes, offices, retail stores, and other small to medium-sized environments. It features a 2 MP 1/2.8-inch CMOS sensor that delivers Full HD 1920 × 1080 video at up to 25/30 fps. Its built-in IR illumination provides up to 30 meters of night vision, while DWDR, 3D NR, HLC, and BLC technologies help maintain image clarity in challenging lighting conditions. The camera also supports Smart H.264+/H.265+ compression for efficient bandwidth and storage usage, along with human detection for more accurate monitoring.
2MP Full HD Bullet IP Camera for Reliable Entry-Level Surveillance
The DH-IPC-HFW1230TC1 delivers clear and stable 1080p Full HD video quality, making it ideal for homes, small offices, retail shops, and general-purpose security monitoring. It is designed as an entry-series camera that provides dependable performance with cost-effective surveillance efficiency.
High-Sensitivity 1/2.8” Progressive CMOS Sensor for Clear Imaging
Equipped with a 1/2.8-inch CMOS image sensor, the camera captures detailed and low-noise video with improved clarity even in low-light environments. This ensures more accurate monitoring and better visibility in both day and night conditions.
Advanced IR Night Vision up to 30m for Continuous Monitoring
The camera features built-in infrared LEDs with an effective illumination range of up to 30 meters, allowing clear black-and-white video recording in complete darkness. This ensures uninterrupted surveillance performance during nighttime operations.
Smart H.265 Compression for Efficient Storage and Bandwidth Usage
Supports Smart H.265+ video compression, which significantly reduces storage requirements and bandwidth consumption while maintaining high-quality video output. This makes it suitable for long-term recording in DVR/NVR systems.
Intelligent Image Enhancement Technologies for Balanced Video Output
Includes advanced imaging features such as DWDR, 3D noise reduction, HLC, and BLC, which help maintain clear and balanced video in challenging lighting conditions such as strong backlight, shadows, or uneven illumination.
Built-in Human Detection for Smarter and More Accurate Alerts
The camera supports intelligent human detection functionality that can differentiate human movement from other motion sources. This helps reduce false alarms and improves the accuracy of security event notifications.
Built-in Microphone for Audio-Enabled Surveillance Monitoring
Integrated microphone support enables audio recording along with video capture, providing enhanced situational awareness and better evidence collection for security applications.
Flexible Installation with PoE and 12V DC Power Support
Supports both Power over Ethernet (PoE) and 12V DC power input, allowing flexible installation options and simplifying cabling requirements for professional surveillance setups.
IP67 Weatherproof Protection for Indoor and Outdoor Use
Built with a durable IP67-rated enclosure, the camera is fully protected against dust and water ingress, ensuring stable performance even in harsh outdoor environments such as rain, dust, and humidity.
Specifications
| Brand | Dahua |
| Model | DH-IPC-HFW1230TC1 |
| Camera | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 16 MB |
| RAM | 64 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) |
| Illuminator On/Off Control | Auto, Manual |
| Illuminator Numbe | 1(IR LED) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm 3.6 mm |
| Field of View | 2.8 mm: H: 101°, V: 54°, D: 119° 3.6 mm: H: 86°, V: 47°, D: 103° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.6 m (1.97 ft) 3.6 mm: 0.9 m (2.95 ft) |
| Intelligence | |
| Human Detection | Support the classification and accurate detection of human |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+, Smart H.264+ |
| Resolution | 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR CBR |
| Video Bit Rate | H.264: 32 kbps–4096 kbps H.265: 12 kbps–4096 kbps |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto, natural, street lamp, outdoor, manual, regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
