Description

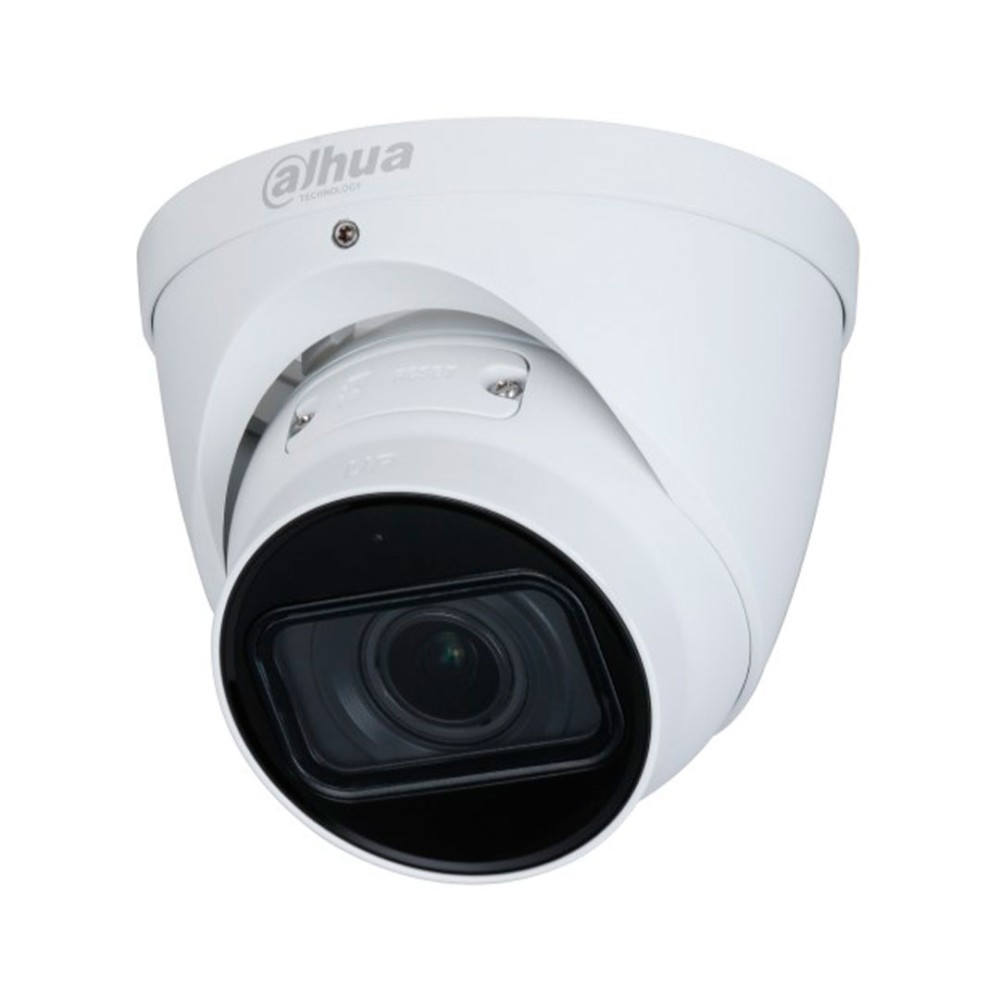

Dahua DH-IPC-HDW1230T1-ZS-S5 2MP Camera
The Dahua DH-IPC-HDW1230T1-ZS-S5 2MP Camera is a reliable entry-level IP surveillance camera designed to deliver clear and detailed Full HD monitoring for homes, offices, shops, and small businesses. It features a 1/2.8-inch 2MP CMOS sensor with a maximum resolution of 1920 × 1080 at up to 25/30 fps. Its motorized 2.8–12mm vari-focal lens allows flexible viewing angles, while built-in IR illumination provides night vision up to 40 meters. The camera supports H.265 and Smart H.265+ compression for efficient storage and bandwidth usage, along with WDR, 3D NR, BLC, HLC, ROI, and motion detection for improved surveillance performance.
2MP Full HD Motorized Vari-Focal IP Eyeball Camera
Equipped with a high-performance 2MP 1/2.8″ CMOS sensor delivering clear video at 1920 × 1080 resolution, ensuring reliable surveillance performance for residential, office, and commercial monitoring environments.
Motorized 2.8mm–12mm Vari-Focal Lens for Flexible Coverage
Supports remote zoom adjustment with a built-in motorized vari-focal lens, allowing flexible viewing angle configuration from wide-area monitoring to focused long-distance surveillance.
Night Vision up to 40m Range
Built-in infrared LEDs provide illumination up to 40 meters, ensuring clear monitoring visibility even in complete darkness and low-light outdoor environments.
Smart H.265+ Compression Technology
Supports Smart H.265+ and H.264+ codecs that significantly reduce bandwidth usage and storage requirements while maintaining high-quality video recording performance.
ICR Day/Night Automatic Switching
Supports automatic ICR switching between color mode during daytime and black-and-white mode at night for optimized performance across varying lighting environments.
Wide Viewing Angle with Adjustable Coverage Range
Provides a flexible horizontal viewing angle from approximately 101° to 33.5°, supporting both wide-area monitoring and targeted surveillance applications.
Dual Power Supply Support (PoE & 12V DC)
Supports both PoE and 12V DC power supply options for simplified installation with single-cable connectivity and flexible deployment options.
Durable IP67 Weatherproof Eyeball Design
IP67-rated housing ensures stable operation in outdoor environments with strong resistance against dust, rain, and harsh weather conditions.
Specifications
| Brand | Dahua |
| Model | DH-IPC-HDW1230T1-ZS-S5 |
| Camera | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 16 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Minimum Illumination | 0.005 Lux@F1.5 (Color, 30 IRE) 0.0005 Lux@F1.5 (B/W, 30 IRE) 0 Lux (Illustrator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | 40 m (131.23 ft) (IR) |
| Illuminator On/Off Control | Auto, Manual |
| Illuminator Number | 2 (IR) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized varifocal |
| Lens Mount | φ14 |
| Focal Length | 2.8 mm–12 mm |
| Max. Aperture | F1.5 |
| Field of View | Horizontal: 101°–33.5° Vertical: 52.5°–19° Diagonal: 125°–38.5° |
| Iris Control | Fixed |
| Close Focus Distance | 1.2 m (3.94 ft) |
| Video | |
| Video Compression | H.265, H.264, H.264B, MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+, Smart H.264+ |
| Video Frame Rate | Main stream:1920×1080@1–25/30 fps Sub stream: 704 × 576@1–25 fps, 704 × 480@1–30 fps |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| Scene Self-adaptation (SSA) | NA |
| White Balance | Self, natural, street lamp, billboard, manual, regional custom |
| Gain Control | Auto, manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | NA |
| Smart Illumination | Yes |
| Defog | NA |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
