Description

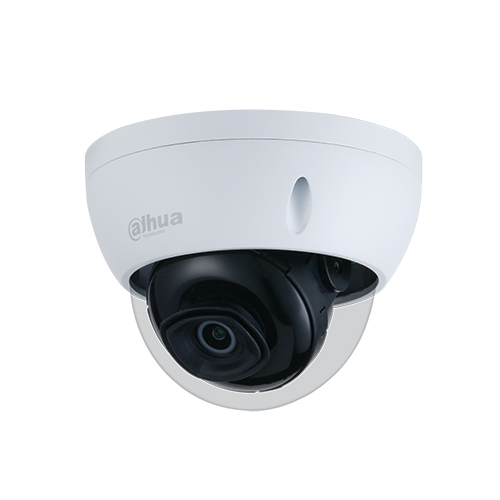

Dahua DH-IPC-HDBW1230E-S5 2MP Camera
The Dahua DH-IPC-HDBW1230E-S5 2MP Camera is a reliable IR fixed-focal dome network camera designed for clear and dependable security monitoring in homes, offices, retail stores, and other small to medium-sized environments. It features a 2MP CMOS image sensor and delivers Full HD 1920 × 1080 video at up to 25/30 fps for detailed surveillance. Its built-in IR illumination provides up to 30 meters of night vision, while DWDR, 3D noise reduction, BLC, and HLC help maintain image quality in challenging lighting conditions. The camera supports Smart H.265+/H.264+ compression to reduce bandwidth and storage requirements and can operate through 12V DC or PoE power.
2MP Full HD IP Dome Camera for Reliable Entry-Level Surveillance
The DH-IPC-HDBW1230E-S5 is designed to deliver clear and stable 1080p Full HD video quality, making it suitable for homes, offices, retail shops, and small commercial security setups. It provides dependable monitoring performance with consistent image clarity for day and night surveillance needs.
High-Sensitivity 1/2.8” Progressive CMOS Sensor for Clear Image Output
Equipped with a 1/2.8-inch CMOS sensor, the camera captures detailed, low-noise video with improved clarity even in challenging lighting conditions. This ensures better color accuracy and sharper image reproduction for effective monitoring.
Advanced IR Night Vision up to 30m for Continuous Low-Light Surveillance
Built-in infrared LEDs provide an effective night vision range of up to 30 meters, allowing the camera to deliver clear black-and-white footage even in complete darkness. This ensures uninterrupted security coverage throughout day and night operation.
Smart H.265+ Compression for Efficient Storage and Bandwidth Optimization
The camera supports H.265 and Smart H.265+ compression technology, which significantly reduces storage requirements and network bandwidth usage while maintaining high-quality video output, making it ideal for long-term recording systems.
Advanced Image Enhancement Technologies for Balanced Video Quality
Includes powerful image processing features such as DWDR (Digital Wide Dynamic Range), 3D noise reduction, HLC, and BLC, which help maintain clear and balanced visuals in environments with strong backlight, shadows, or uneven lighting conditions.
Flexible Installation with PoE and 12V DC Power Support
Supports both Power over Ethernet (PoE) and 12V DC power input, allowing flexible installation options and reducing cabling complexity for professional surveillance system setups.
Specifications
| Brand | Dahua |
| Series | Fixed Focal |
| Model | DH-IPC-HDBW1230E-S5 |
| Camera | |
| Image Sensor | 1/2.7” 2Megapixel progresive CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| RAM/ROM | 256MB/32MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s |
| Minimum Illumination | 0.08Lux/F2.0( Color,1/3s,30IRE) 0.3Lux/F2.0( Color,1/30s,30IRE) 0Lux/F2.0(IR on) |
| S/N Ratio | More than 50dB |
| IR Distance | Distance up to 30m(98ft) |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 24 |
| Lens | |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 2.8 mm (3.6 mm optional) |
| Max. Aperture | F2.0/F2.0 |
| Angle of View | H: 104°/92°, V: 55°/50° |
| Focus Control | Fixed |
| Close Focus Distance | 0.6m(0.9m) |
| PTZ | |
| Pan/Tilt Range | Pan: 0° ~355° Tilt: 0° ~65° Rotation: 0° ~355° |
| Intelligence | |
| Event Trigger | Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly |
| IVS | Tripwire, Intrusion |
| Video | |
| Compression | H.265, H.264H, MJPEG(Sub Stream) |
| Smart Codec | Support H.265+, H.264+ |
| Streaming Capability | 2 Streams |
| Resolution | 1080P(1920×1080), 1.3M(1280×960), 720P(1280×720), D1(704×576/704×480), VGA(640×480),CIF(352×288/352×240) |
| Frame Rate | Main Stream: 1080P(1 ~ 25/30fps) Sub Stream: D1(1 ~ 25/30fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265: 12K ~ 6400Kbps H.264: 32K ~ 10240Kbps |
| Day/Night | Auto(ICR), Color, B/W |
| BLC Mode | BLC, HLC, DWDR |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual |
| Gain Control | Auto, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Electronic Image | Support |
| Smart IR | Support |
| Digital Zoom | 16x |
| Flip | 0°/90°/180°/270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Audio | |
| Compression | N/A |
