Dahua DH-IPC-B1E20 2MP Camera

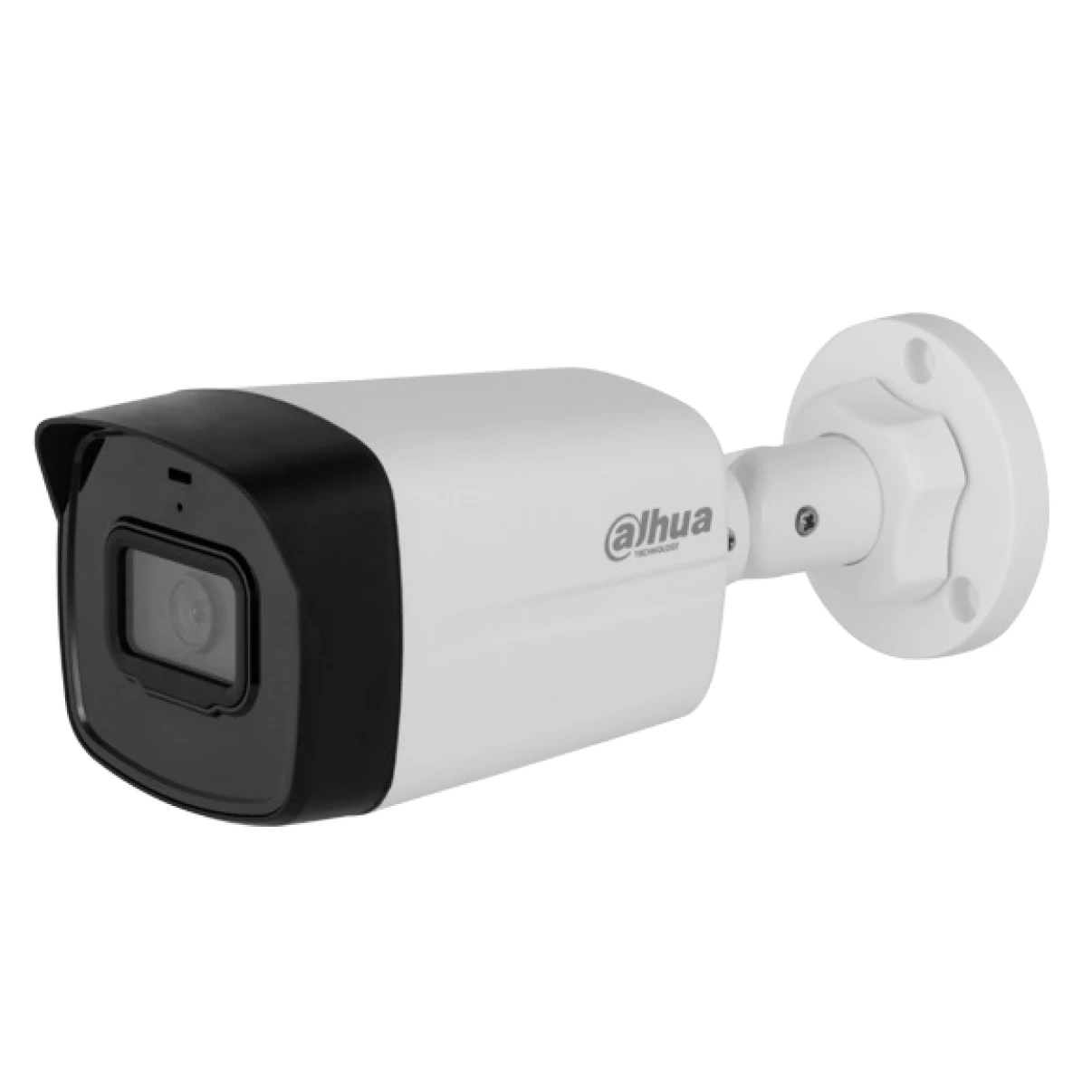

The Dahua DH-IPC-B1E20 2MP Camera is an efficient ECO Series fixed-focal bullet network camera designed for reliable indoor and outdoor surveillance. It delivers 1920 × 1080 Full HD resolution at up to 30 fps, providing clear and smooth video for homes, offices, shops, and other security applications. The camera features built-in IR illumination with a range of up to 30 meters for dependable night-time monitoring, while technologies such as DWDR, 3D noise reduction, HLC, and BLC help improve image quality in challenging lighting conditions. Its H.265/Smart H.265+ video compression helps reduce bandwidth and storage requirements, and the IP67 protection rating provides resistance to dust and water for outdoor installation.
2MP Full HD Video Quality
Equipped with a 1/3.2-inch CMOS image sensor, the camera captures crisp 1920 × 1080 Full HD video at up to 30 fps, providing sharp images with excellent detail for reliable day-to-day monitoring.
30m Infrared Night Vision
Built-in high-performance IR LEDs provide clear night vision up to 30 meters, allowing the camera to capture detailed black-and-white images even in complete darkness for round-the-clock protection.
Smart H.265+ Video Compression
Supporting Smart H.265+, H.265, Smart H.264+, and H.264, the camera significantly reduces bandwidth usage and storage requirements while maintaining excellent image quality, helping extend recording time without increasing storage costs.
Enhanced Image Processing
Advanced image enhancement technologies including DWDR, 3D Noise Reduction (3D NR), Backlight Compensation (BLC), and Highlight Compensation (HLC) deliver balanced exposure and clearer images in challenging lighting conditions such as entrances, windows, and outdoor environments.
Motion Detection
The camera supports intelligent motion detection, automatically triggering recording or alerts whenever movement is detected within the monitored area. This helps improve security while reducing unnecessary recording.
Efficient Dual-Stream Encoding
With support for dual-stream video, users can optimize live viewing and recording quality independently, ensuring smoother remote monitoring while conserving bandwidth.
Flexible Fixed-Focal Lens
Available with 2.8 mm or 3.6 mm fixed-focal lens options, the camera offers flexible viewing angles suitable for entrances, corridors, parking areas, and general perimeter monitoring.
Easy Installation
Powered by 12V DC, the camera is simple to install and integrates easily into new or existing IP surveillance systems, making it an ideal solution for small and medium-sized security deployments.
IP67 Weatherproof Protection
The IP67-rated housing protects the camera against dust, rain, and harsh weather conditions, ensuring reliable operation in both indoor and outdoor installations throughout the year.
Specifications
| Brand | Dahua |
| Model | DH-IPC-B1E20 |
| Camera | |
| Image Sensor | 1/3.2″ CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 16 MB |
| RAM | 64 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.01 lux@F2.2 (Color, 30 IRE) 0.005 lux@F2.2 (B/W,30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) (IR LED) |
| Illuminator On/Off Control | Auto, Manual |
| Illuminator Number | 2 (IR LED) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm, 3.6 mm |
| Max. Aperture | F2.2 |
| Field of View | 2.8 mm: H: 99°, V: 55°, D: 117° 3.6 mm: H: 79°, V: 43°, D: 94° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.8 m (2.62 ft) |
