Description

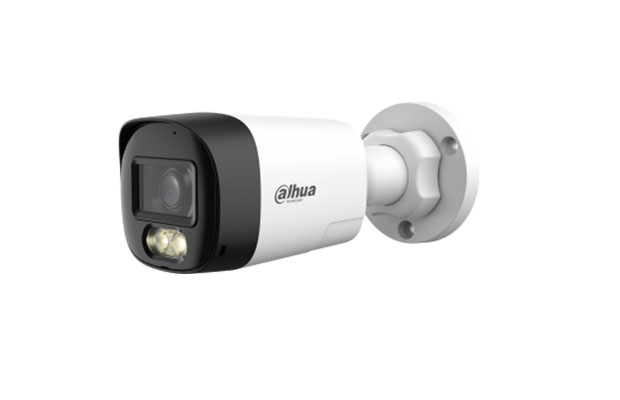

Dahua DH-HAC-HFW1200RLP-IL-T 2MP Camera
The Dahua DH-HAC-HFW1200RLP-IL-T 2MP Camera is a reliable Smart Dual Light HDCVI bullet camera designed for clear and effective surveillance in both day and night conditions. It features a 2MP CMOS sensor with 1920 × 1080 Full HD resolution and supports up to 30 fps at 1080p. Its Smart Dual Light technology combines IR and LED illumination with a range of lighting modes and up to 30-meter illumination distance for improved nighttime visibility. The camera also includes a built-in microphone and speaker for two-way talk, along with 3DNR and DWDR technologies for clearer images in challenging lighting. With CVI/TVI/AHD/CVBS switchable video output and an IP67-rated weather-resistant design, it is well suited for homes, shops, offices, warehouses, and outdoor security installations.
2MP Full HD HDCVI Bullet Camera
Equipped with a 2MP CMOS sensor delivering clear video at 1920 × 1080 (Full HD) resolution.
Smart Dual Light Technology
Combines IR and warm white light (Smart IR & WL) for enhanced visibility and full-color night monitoring when required.
Night Vision up to 30m
Provides up to 30 m illumination distance with both IR and white light for clear images in darkness.
Two-Way Audio (Mic & Speaker)
Built-in microphone and speaker support two-way communication up to ~8 m, with audio over coaxial cable.
Multi-Format Video Output
Supports CVI / TVI / AHD / CVBS, ensuring compatibility with various DVR/XVR systems.
Fixed Lens Options
Available with 2.8 mm or 3.6 mm lens, providing wide viewing angles for different surveillance needs.
Advanced Image Processing
Includes DWDR, BLC, HLC, and 3D noise reduction, improving image clarity in challenging lighting conditions.
Smart Light+ Technology
Automatically adjusts illumination brightness for optimized night performance and reduced overexposure.
Day/Night Function
Supports ICR auto switching (color/B&W) for better performance in varying light environments.
Specifications
| Brand | Dahua |
| Model | DH-HAC-HFW1200RLP-IL-T |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s |
| Min. Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | 30 m (98.43 ft) |
| Illuminator On/Off Control | Auto Manual |
| Illuminator Number | 2 (Multi-core light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm, 3.6 mm |
| Max. Aperture | F2.0 |
| Field of View | 2.8 mm: H: 111.3°, V: 60.8°, D: 134.2° 3.6 mm: H: 89°, V: 48.2°, D: 109.1° |
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.7 m (2.30 ft) |
| Video | |
| Video Frame Rate | CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H |
| Resolution | 1080p (1920 × 1080), 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC, HLC, WDR |
| WDR | DWDR |
| White Balance | Auto |
| Gain Control | Manual, Auto |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR&WL, WL Mode, IR Mode |
| Mirror | Yes |
