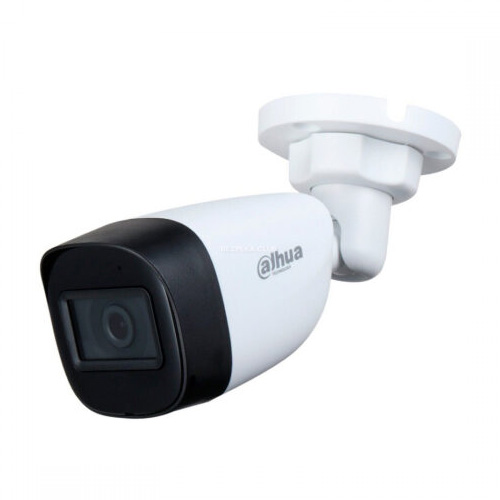

Dahua DH-HAC-HFW1200CP 2MP Camera
The Dahua DH-HAC-HFW1200CP 2MP Camera is a reliable HDCVI IR bullet camera designed for clear and dependable security monitoring. It delivers 1920 × 1080 Full HD resolution and supports up to 30fps at 1080p, providing sharp and smooth video. With Smart IR illumination up to 30 meters, it offers effective nighttime surveillance, while its IP67 weather-resistant housing makes it suitable for indoor and outdoor installations. The camera also supports CVI, CVBS, AHD, and TVI video formats, making it a versatile choice for homes, offices, shops, and other security applications.
2MP Full HD HDCVI Bullet Camera
Equipped with a 1/2.7″ CMOS sensor delivering clear video at 1920 × 1080 (Full HD) resolution.
Multi-Format Video Output
Supports CVI / TVI / AHD / CVBS, ensuring compatibility with various DVR/XVR systems.
Infrared Night Vision
Built-in IR LEDs with up to 30 m illumination distance, enabling clear monitoring in complete darkness.
Smart IR Technology
Automatically adjusts IR intensity to prevent overexposure and improve image clarity at night.
Fixed Lens Options
Available with 2.8 mm or 3.6 mm lens, providing wide viewing angles for different surveillance needs.
Day/Night Function
Supports ICR auto switching (color/B&W) for optimal performance in varying light conditions.
Advanced Image Processing
Includes DWDR, BLC, HLC, and 2D/3D noise reduction, enhancing image quality in challenging lighting conditions.
Durable Outdoor Design
Rated IP67 weatherproof, suitable for both indoor and outdoor installations.
Specifications
| Brand | Dahua |
| Model | DH-HAC-HFW1200CP |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
| Min. Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | 30 m (98.43 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 2 (IR light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm, 3.6 mm |
| Max. Aperture | F2.0 |
| Field of View | 2.8 mm: H: 102°, V: 60°, D: 129° 3.6 mm: H: 83°, V: 48°, D: 104° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.7 m (2.30 ft) |
| Video | |
| Video Frame Rate | CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H |
| Resolution | 1080p (1920 × 1080), 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC, HLC, DWDR |
| WDR | DWDR |
| White Balance | Auto, Area white balance |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Certification | |
| Certifications | CE-LVD: EN 62368-1 CE-EMC: EN 55032, EN 55035 FCC: 47 CFR FCC Part 15, Subpart B |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
