Description

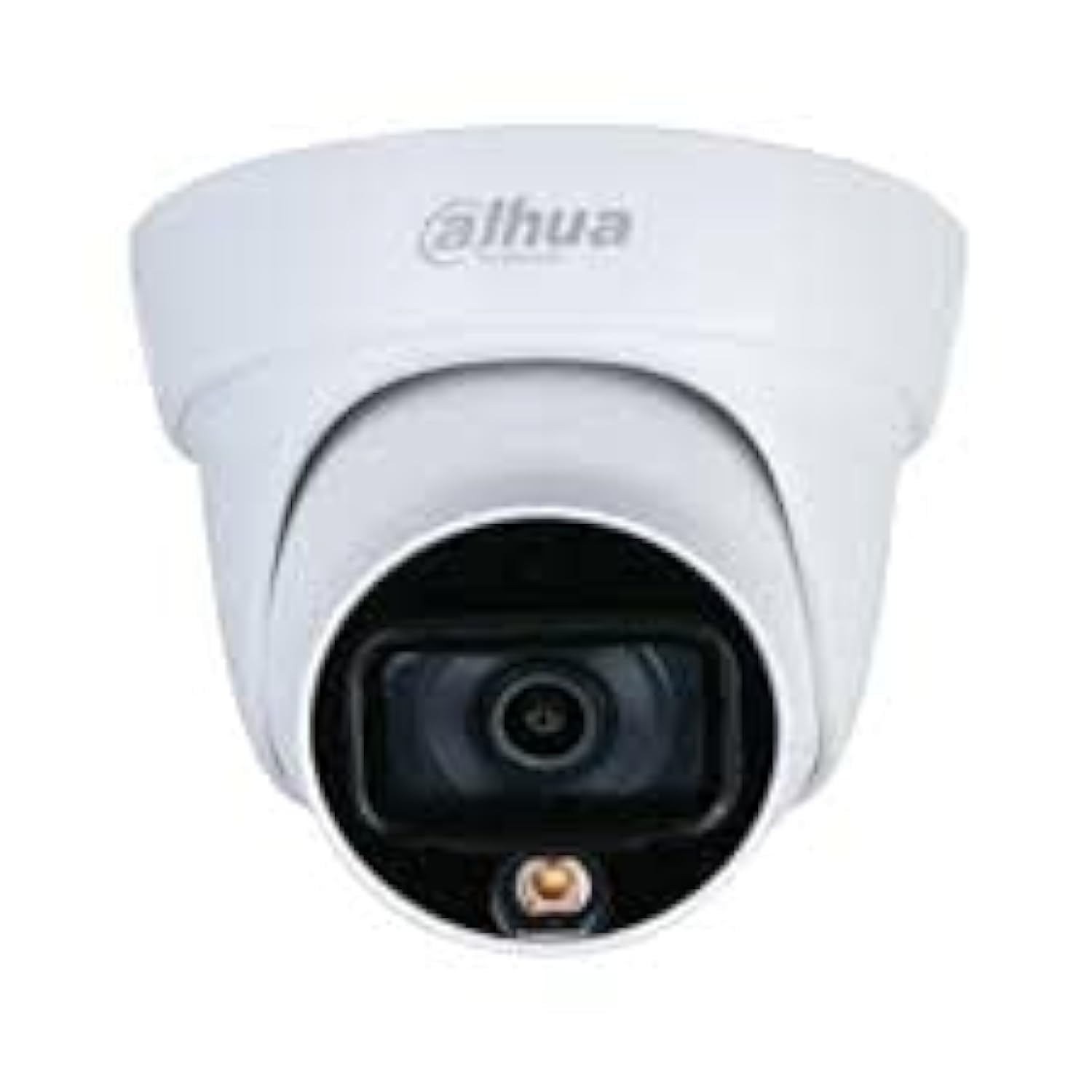

Dahua DH-HAC-HDW1209TLQP-LED 2MP Camera
The Dahua DH-HAC-HDW1209TLQP-LED 2MP Camera is a reliable Full-color Starlight HDCVI eyeball camera designed for clear 24/7 surveillance. It delivers 1920×1080 resolution and uses advanced low-light technology with a warm white LED providing illumination up to 20 meters, allowing colorful and detailed images even in dark environments. The camera supports CVI, TVI, AHD, and CVBS switchable video outputs, along with a fixed 2.8mm or 3.6mm lens option. With DWDR, BLC, HLC, and 2D noise reduction, it provides improved image quality in challenging lighting conditions. Its IP67 protection and durable design make it suitable for both indoor and outdoor security applications.
2MP Full HD HDCVI Camera
Equipped with a 1/2.8″ CMOS sensor delivering clear video at 1920 × 1080 (1080p) resolution.
Full-Color Starlight Technology
Provides 24/7 color imaging, even in low-light conditions using built-in white LED illumination.
White Light Night Vision (20m)
Built-in LED light offers illumination up to 20 meters, ensuring clear visibility at night.
Multi-Format Compatibility
Supports CVI / TVI / AHD / CVBS video output, making it compatible with various DVR/XVR systems.
Advanced Image Processing
Includes DWDR, BLC, HLC, and 2D noise reduction, enhancing image quality in challenging lighting conditions.
Day/Night Function
Supports automatic ICR switching for optimized color and black-and-white performance.
Durable Outdoor Design
Rated IP67 weatherproof with metal + plastic housing, suitable for indoor and outdoor use.
Specifications
| Brand | Dahua |
| Model | DH-HAC-HDW1209TLQP-LED |
| Camera | |
| Image Sensor | 1/2.8″ CMOS |
| Effective Pixels | 1920(H)×1080(V), 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum Illumination | 0.01Lux/F1.6, 0Lux white light on |
| S/N Ratio | More than 65dB |
| IR Distance | 20 m (65.61 ft) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 1 |
| Lens | |
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 3.6mm (2.8mm Optional) |
| Max Aperture | F1.6 |
| Angle of View | 2.8 mm: 126.2° × 106° × 56.5° (diagonal × horizontal × vertical) 3.6 mm: 103.6° × 86.9° × 46.3° (diagonal × horizontal × vertical) |
| Focus Control | N/A |
| Close Focus Distance | 2.8 mm: 0.6 m (1.97 ft) 3.6 mm: 1.2 m (3.94 ft) |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
